Job # 2667

Material: Stainless Steel, grade 303
Machine: Hanwha SL20H
Market: Pneumatic systems

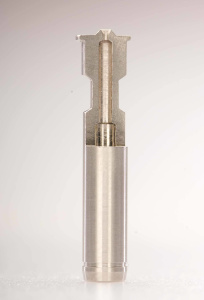

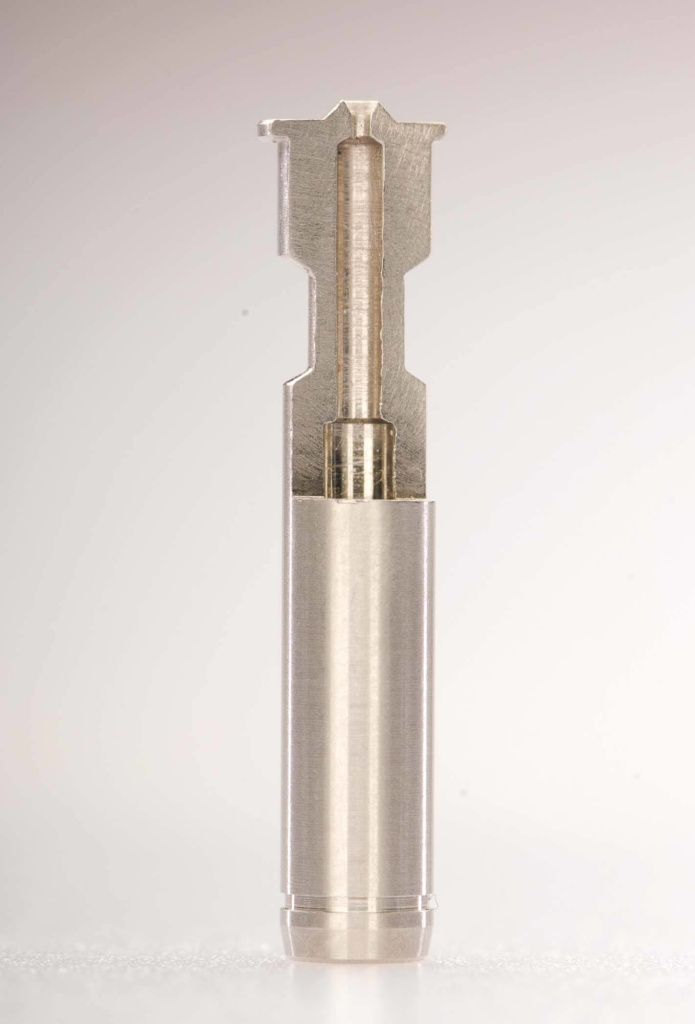

Other interesting facts:  The part has been sectioned to show the 0.100” hole leading to 0.0625” hole to 0.025” through hole.  The top end has a 0.002 to 0.005” radius feature for a sealing surface.
